CPM: Oil injected rotary screw air compressors
A small, powerful machine featuring the components of larger compressors.

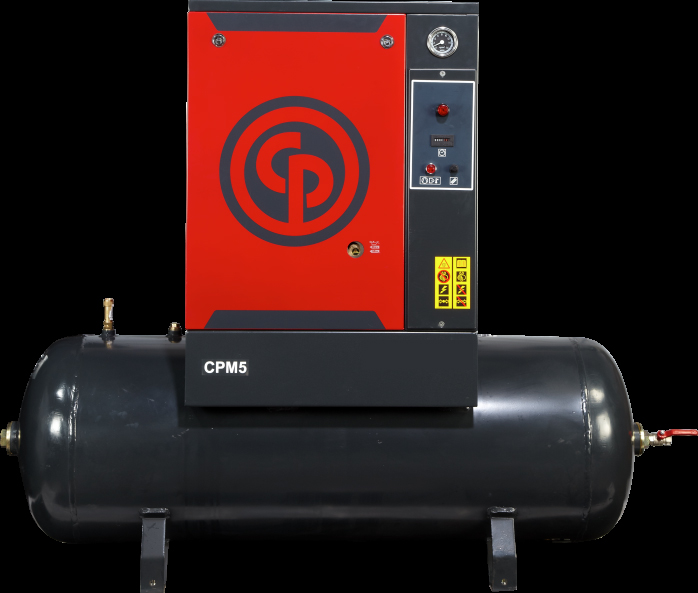

The tank-mounted air compressor is especially suitable for location near the application of the compressed air or as an extension to existing installations.
The tank-mounted compressor with dryer is tailored to installations that need to produce compressed air with a low dew point. The unit consists of a compressor, a tank and a refrigerating dryer using R 134 gas. It features a dew-point indicator and timed condensate discharge. When oil-free compressed air is required, the unit can be fitted with a series of de-oiling filters.
Specification of tank-mounted
| Model | Pressure (BAR G) | Motor | M3/HR | CFM | db(A) | Weight in Kg. | L W H in mm | |
|---|---|---|---|---|---|---|---|---|
| HP | Kw | |||||||
| CPM 3 | 10 | 3 | 2 | 14 | 8 | 61 | TM : 175 TMD : 209 | TM/TMD:1420 X 550 X1280 |
| CPM 4 | 10 | 4 | 3 | 19 | 11 | 61 | TM : 175 TMD : 209 | |
| CPM 5 | 10 | 5 | 4 | 28 | 17 | 62 | TM : 176 TMD : 210 | |
| CPM 7 | 10 | 7.5 | 5.5 | 36 | 21 | 65 | TM : 182 TMD : 216 | |
Note:
- Unit performance measured according to ISO 1217 Ed 3 Annex C. 1996.
- Noise level measured according to Pneurop / CAGI PN8NTC2
- Suffix D indicate air dryer version.
