CPC G / CPD G/ CPE G / CPF G– 40 to 340 hp gear drive compressor

CPC G / CPD G/ CPE G / CPF G– 40 to 340 hp gear drive compressor

With vast experience in rotary screw compressors, CP is introducing new dimension with gear drive technology for energy efficient production. The gear driven transmission maximizes machine output for the given pressure and power.

Features:

  • Industry leading performance
  • Highly reliable components
  • TEFC , Efficiency 1 ,IP 55, Class F motor
  • Designed for 46 degree ambient temperature
  • Low sound pressurized canopy
  • Reduced energy consumption for optimum input
  • Compact – user friendly – easy to install
  • Smart controller with optional DCS /MCC connectivity

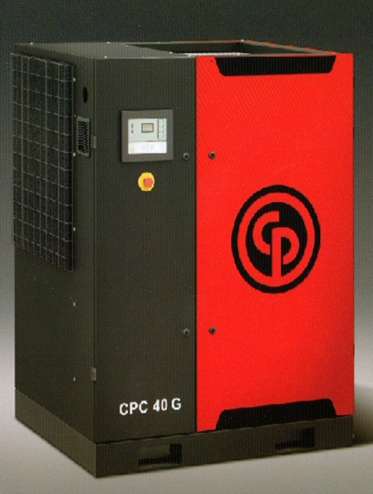

CPC G

Model Pr Motor Capacity Wt Dimension
bar (g) Hp Kw m3/hr cfm kg L W H in mm
CPC 40 7 40 30 346.9 204 865 1680 X 951 X 1503
CPC 40 8.5 40 30 318 187 865 1680 X 951 X 1503
CPC 40 10 40 30 289.1 170 865 1680 X 951 X 1503
CPC 40 13 40 30 241.5 142 865 1680 X 951 X 1503
CPC 50 7 50 37 408.2 240 865 1680 X 951 X 1503
CPC 50 8.5 50 37 379.3 223 865 1680 X 951 X 1503
CPC 50 10 50 37 353.7 208 865 1680 X 951 X 1503
CPC 50 13 50 37 289.1 170 865 1680 X 951 X 1503
CPC 60 7 60 45 489.8 288 895 1680 X 951 X 1503
CPC 60 8.5 60 45 450.7 265 895 1680 X 951 X 1503
CPC 60 10 60 45 418.4 246 895 1680 X 951 X 1503
CPC 60 13 60 45 363.9 214 895 1680 X 951 X 1503

CPD G

Model Pr Motor Capacity Wt Dimension
bar (g) Hp Kw m3/hr cfm kg L W H in mm
CPD 75 7 75 55 605.4 356 1165 1850 X 1060 X 1632
CPD 75 8.5 75 55 559.5 329 1165 1850 X 1060 X 1632
CPD 75 10 75 55 518.7 305 1165 1850 X 1060 X 1632
CPD 75 13 75 55 447.3 263 1165 1850 X 1060 X 1632
CPD 100 7 100 75 785.7 462 1195 1850 X 1060 X 1632
CPD 100 8.5 100 75 743.2 437 1195 1850 X 1060 X 1632
CPD 100 10 100 75 678.6 399 1195 1850 X 1060 X 1632
CPD 100 13 100 75 579.9 341 1195 1850 X 1060 X 1632

CPE G

Model Pr Motor Capacity Wt Dimension
bar (g) Hp Kw m3/hr cfm kg L W H in mm
CPE 100 7 100 75 879.3 517 1680 2210 X 1060 X 1594
CPE 100 10 100 75 729.6 429 1680 2210 X 1060 X 1594
CPE 100 13 100 75 615.6 362 1680 2210 X 1060 X 1594
CPE 120 7 120 75 969.4 570 1680 2210 X 1060 X 1594
CPE 120 10 120 90 846.9 498 1680 2210 X 1060 X 1594
CPE 120 13 120 90 719.4 423 1680 2210 X 1060 X 1594
CPE 125 7.5 125 90 1007.5 593 2250 2400 X 1600 X 2080
CPE 125 8.5 125 90 942.9 555 2250 2400 X 1600 X 2080
CPE 125 10 125 90 856.3 504 2250 2400 X 1600 X 2080
CPE 125 14 125 90 662.6 390 2250 2400 X 1600 X 2080
CPE 150 7.5 150 110 1199.5 706 2250 2400 X 1600 X 2080
CPE 150 8.5 150 110 1126.4 663 2250 2400 X 1600 X 2080
CPE 150 10 150 110 1022.8 602 2250 2400 X 1600 X 2080
CPE 150 14 150 110 824.0 485 2250 2400 X 1600 X 2080
CPE 180 7.5 180 132 1444.2 850 2250 2400 X 1600 X 2080
CPE 180 8.5 180 132 1364.3 803 2250 2400 X 1600 X 2080
CPE 180 10 180 132 1255.6 739 2250 2400 X 1600 X 2080
CPE 180 14 180 132 1007.5 593 2250 2400 X 1600 X 2080
CPE 220 7.5 220 160 1821.3 1072 2250 2400 X 1600 X 2080
CPE 220 8.5 220 160 1734.7 1021 2250 2400 X 1600 X 2080
CPE 220 10 220 160 1602.2 943 2250 2400 X 1600 X 2080
CPE 220 14 220 160 1296.3 763 2250 2400 X 1600 X 2080

CPF G

Model Pr Motor Capacity Wt Dimension
bar (g) Hp Kw m3/hr cfm kg L W H in mm
#CPF270 7.5 270 200 2130.5 1254 4970 3180 X 2140 X 2140
CPF 270 8.5 270 200 1962.3 1155 4970 3180 X 2140 X 2140
CPF 270 10 270 200 1846.8 1087 4970 3180 X 2140 X 2140
CPF 270 13 270 200 1569.9 924 4970 3180 X 2140 X 2140
#CPF 340 7.5 340 250 2451.7 1443 5150 3180 X 2140 X 2140
CPF 340 8.5 340 250 2400.7 1413 5150 3180 X 2140 X 2140
CPF 340 10 340 250 2252.9 1326 5150 3180 X 2140 X 2140
CPF 340 13 340 250 1908.0 1123 5150 3180 X 2140 X 2140

# Available in water cooled
