CPA: Oil injected rotary screw air compressors
Tank-mounted air compressor
Tank Mounted Air Compressors are especially suitable for new or independent installations where compressed air with a low noise level is needed. The unit consists of a compressor and tank.
Floor-mounted air compressor
Especially suitable for installations near which compressed air is needed or as an extension to existing installations.

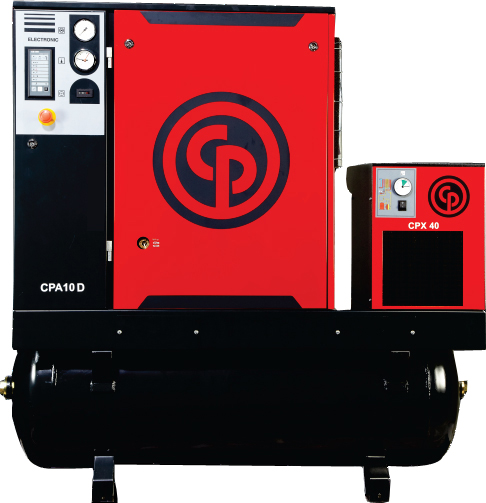

Tank-mounted with dryer
Especially suitable for installations that need to produce compressed air with a low dew-point. The unit consists of a compressor, a tank and a refrigerating dryer using R 134 gas: it features a dew-point indicator and timed condensate discharge. When oil-free compressed air is required, the unit can be fitted with a series of de-oiling filters.
Features:
- Industrial technology compressors
- High quality in design, components and manufacturing
- Factory tested complete compressed air system use of world class rotary screw elements, designed for continuous operation
- High quality manufacturing standards, make the CPA compressor a highly reliable compressed air system
Technical Data
| Model | Pressure (BAR G) | Motor | M3/HR | CFM | db(A) | Weight in Kg. | L W H in mm | |
|---|---|---|---|---|---|---|---|---|
| HP | Kw | |||||||
| CPA 7 | `7-10 | 7.5 | 5.5 | `51-38 | `30-22 | 68 | FM:195 TM:695 TMD:725 | FM : 965 x 617 x 1040 TM/TMD : 1925 x 617 x 1640 |
| CPA 10 | `7-10-13 | 10 | 7.5 | `70-60-47 | `42-35-28 | 68 | FM:215 TM:715 TMD:740 | |
| CPA 15 | `7-10-13 | 15 | 11 | `99-84-73 | `58-50-43 | 68 | FM:230 TM:730 TMD:765 | |
| CPA 20 | `7-10-13 | 20 | 15 | `120-107-88 | `71-63-52 | 68 | FM:235 TM:735 TMD:770 | |
Note:
- Unit performance measured according to ISO 1217 Ed 3 Annex C. 1996.
- Noise level measured according to Pneurop / CAGI PN8NTC2
